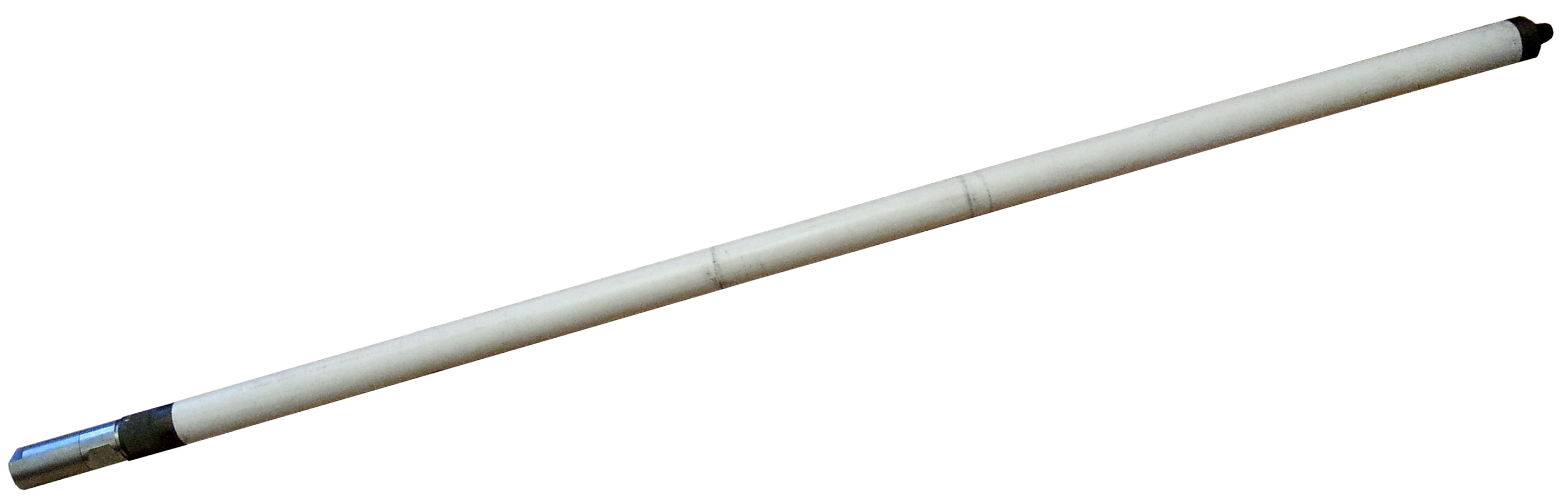

Single-probe induction logging tool IR-GK1

Appointment

The IR-GK1 single- probe induction logging tool is designed for induction and gamma-ray logging in water wells with registration of active and reactive components of apparent conductivity.

The device is used in an open hole or cased (pipes made of plastic) wells filled with flushing fluid with a resistance above 0.1 Ohm / m or in dry ones. In cased wells, the device strikes the boundaries of the reservoir and the filter from a metal mesh.

Execution

The IR-GK1 single- probe induction logging tool has cable and autonomous versions.

Specifications

Name	Value
Induction probe formula	3I1,3
The radius of the research of the induction probe: - horizontal R, m - vertical H, m	1.9 1.6
Operating frequency of the probe, kHz	100 ± 0.5
Measuring range of apparent electrical conductivity (resistance ): - active component, mS / m (Ohm / m) - reactive component, mS / m (Ohm / m)	2 - 1000 (1 - 500) 2 - 1000 (1 - 500)
Measurement error of N value, mSm / m (Ohm / m)	± (0,03 * N + 1) (± (0,05 * N + 1))
Zero- level stability : - for the active component, mS / m (Ohm / m) - for the reactive component, mS / m (Ohm / m) / m	± 1 (± 1) ± 2 (± 2)
Coefficient of mutual influence: - active component on the reactive - reactive component on the active	no more than 0.04 no more than 0.04
Sensitivity of probes, not worse than mS / m (Ohm / m)	0.5 (2)
The most admissible ambient temperature, ° C	fifty
Maximum allowable hydrostatic pressure of the environment, MPa	3,5
Diameter of the investigated wells, mm	from 110 to 350
Logging speed, m / h	up to 750
The maximum diameter of the device, mm	64
Device length, mm, no more	2270
Mass of the device, kg, no more	8.5

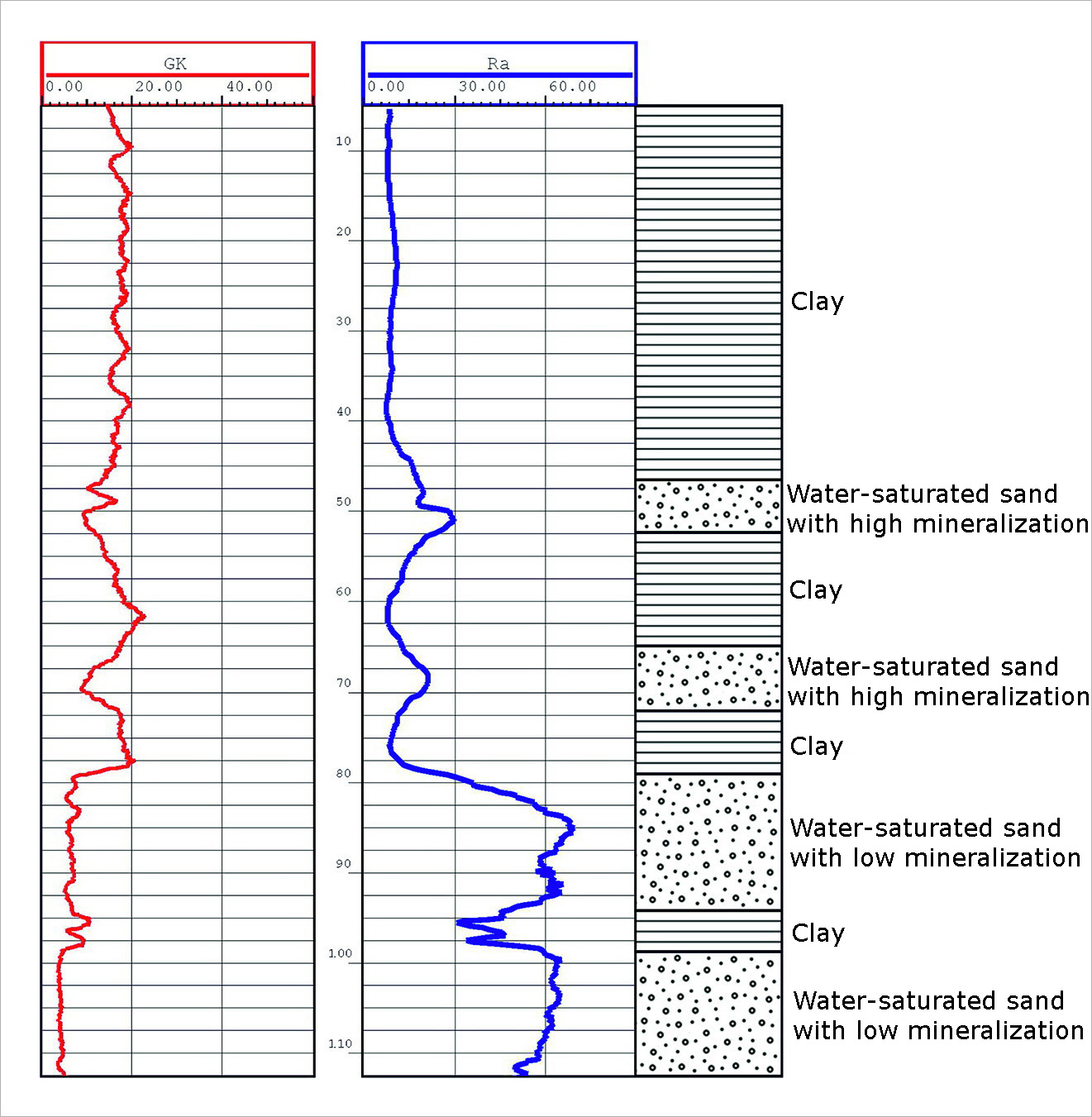

An example of the received data of the induction logging tool
