Pressure control unit UKD-4

Appointment

The UKD-4 pressure control unit is designed for continuous monitoring of changes in overpressure in a controlled environment and recording them in the computer memory in automatic control systems of production processes in technological installations of oil and gas producing and oil refining enterprises, heat power engineering enterprises, water supply enterprises, etc.

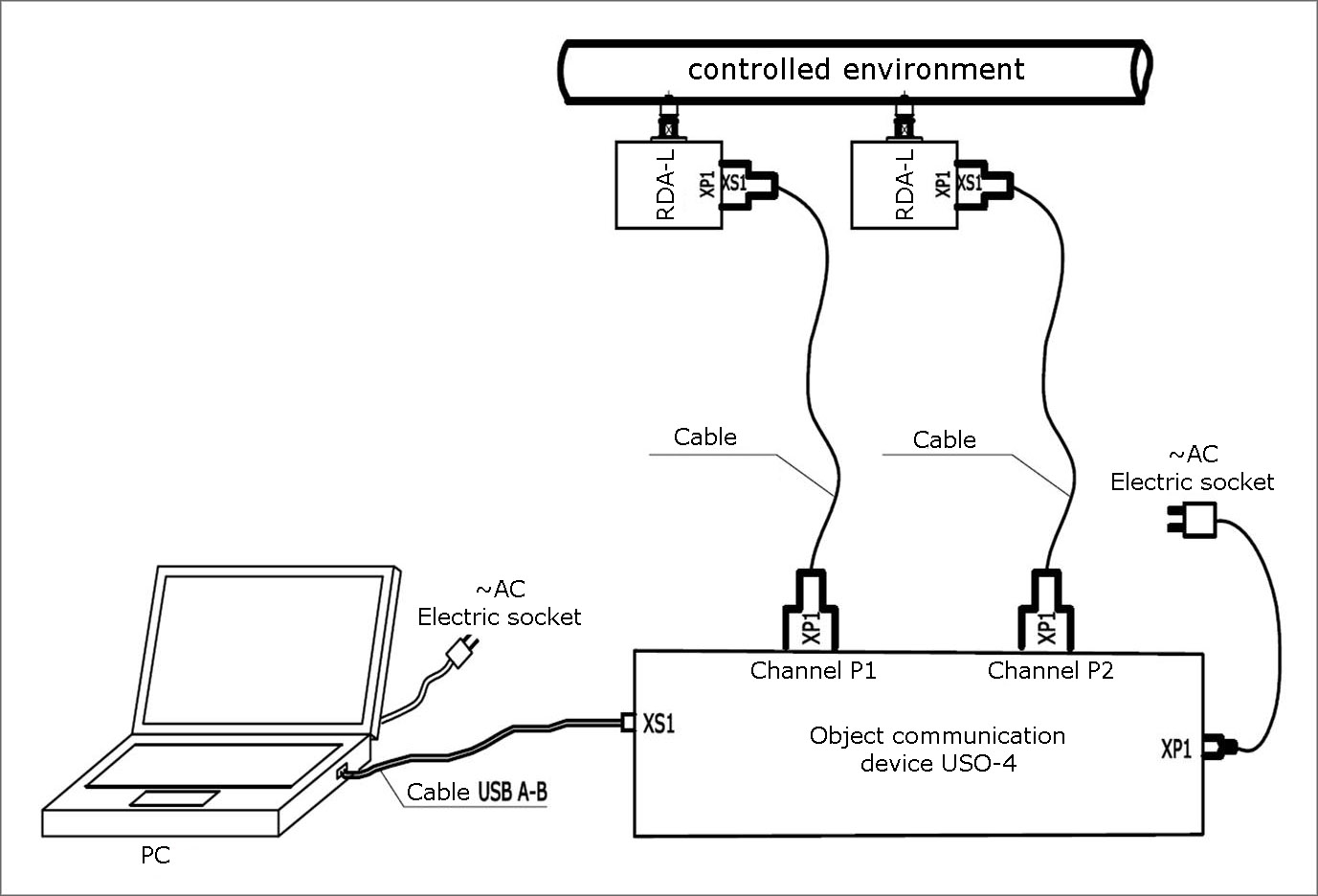

The layout of the nodes of the installation of pressure control UKD-4

The layout of the nodes of the installation of pressure control UKD-4



Key Specifications

Name

Value

The upper limit of the measuring range of excess pressure, MPa

60

The limits of the main permissible relative error in measuring overpressure,%

± 0.5

Pressure resolution,% of upper measurement limit, no worse

0.002

Operating temperature range, ° С

from 0 to 50

Data logging period, s

1
