Complex of wellhead parameters monitoring for gas wells FAKEL-B
The Fakel-B complex is designed to record pressure and temperature at the wellhead in real time with display on a computer screen.
In the FAKEL-B complex , data transmission from pressure recorders (RDA), temperature recorders (RTA), as well as from a remote manometer-thermometer (MTB) to the USO is carried out via a wireless communication channel. Removal of RDA and RTA from USO, which ensures stable data transmission in open space - up to 30 m, and for a remote pressure gauge-thermometer - up to 500 m.
 |
 |
 |
|
 |
 |
 |
|
Functional diagrams of complexes

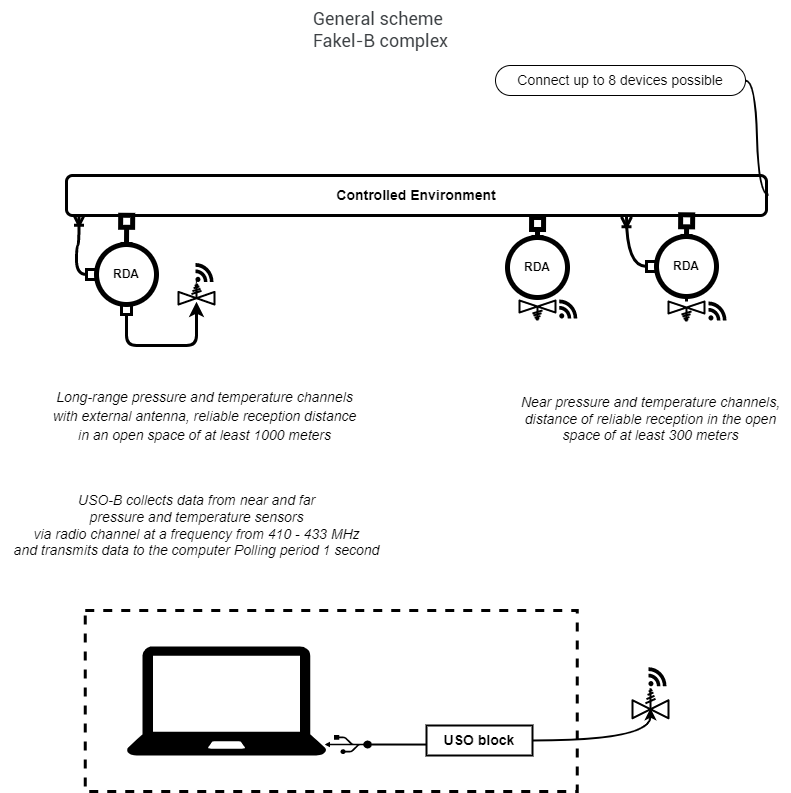

Layout of nodes of the complex for monitoring the wellhead parameters of gas wells FAKEL-B.
Main technical characteristics
|
Name |
Value |
|
Upper limit of gauge pressure measurement range, MPa |
sixteen; 25; 40; 60 |
|
Limits of basic permissible relative error of gauge pressure measurement,% |
± 0.1 *; ± 0.25; ± 0.5 |
|
Pressure resolution,% of the upper limit of gauge pressure measurement, not worse |
0.0015 |
|
Operating temperature range, ° С |
from minus 20 to 50 |
|
Temperature resolution, ° С, not worse |
0.005 |
* by special order
